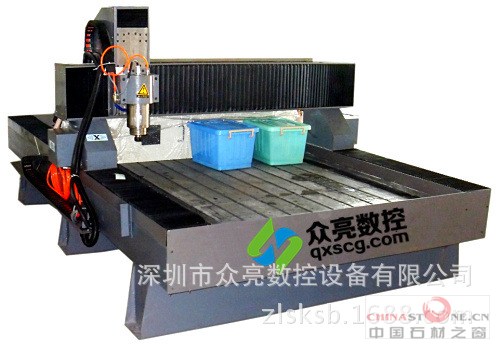

众亮数控—石材雕刻机
应用行业/ApplicableIndustry
适用于：石雕,砖雕,玉雕,墓碑,装饰装潢,园林艺术,工艺品.可加工材质：大理石、玉石、瓷砖、人造石、玻璃、铜、铝、铁等材质
Suitable for industries such as billboards,model industry,electronics and electic appliances, decoration industry, toysand gifts, furniture manufacturing, etc. Available materials: acrylic, doublecolor boards, plastic, wood, ABS, PVC, MDF, PCB, copper, aluminium and variousnon-ferrous metals
产品描述/Productdescription
1.床身为大方管焊接结构，龙门与立柱均为钢结构
2.三轴均为台湾进口直线导轨，齿条传动
3.设备使用自动水循环系统与水槽设计,确保刀具更长使用受命
4.整机采用防水设计,确保传动部位与电路部位的耐用与安全
5.主轴电机为大功率水冷变频主轴,防水设计
6.可根据客户要求定做非标机型
1.The overall body cast iron beds, andsecondary tempering precision machining; thick beams and columns for thewidened designed to 15MMnatural marble carving knife
2.The device with automatic water systemand tank design, to ensure that longer use of the tool was ordered
3.The machine uses water-proof design, toensure transmission parts and circuit parts of the
4.Spindle motor frequency spindle highpower water-cooled, water-proof design
5.Ccan be tailored according to customer demandnon-standard models
技术参数/TechnicalParameter
| 产品型号/Model
|
zl-S1325
|
| 工作行程/Working area
|
1300*2500*160mm
|
| 外观尺寸/Volume
|
3200*2020*1250mm
|
| 主轴功率/Main axle power rate
|
2.2/3/4.5/5.5KW(可选)
|
| 主轴转速/Main axle rotating speed
|
6000-24000 rpm/min
|
| 最大加工速度/Max.Working speed
|
8000mm/min
|
| 最大进料高度/Feeding height
|
180mm
|
| 刀柄直径/Engraving tools
|
3.175/4/6/12.7mm
|
| 重复定位精度/Repositioning Accuracy
|
0.02mm
|
| 文件格式/Supported File Format
|
DXF,PLT,G代码,MMG,U00,NC,ENG
|
| 工作电压/Power
|
AC220V(380V)/50HZ AC110V/60HZ(可选)
|
| 整机重量/Weigth
|
1600kg
|
